The Etsuro Gold represents the top of the MC cartridge models and has been created to provide supreme sensation to the audiophiles around the world. Faithful to the basic engineering, the Etsuro Gold has absorbed over 40years of cartridge manufacturing experience of Excel Sound.

Etsuro Gold model features the diamond cantilever and due to the diamond’s hardness characteristics, the vibration transmittance speed can be increased to improve the sound quality. At the same time, unnecessary resonance is reduced to emphasize the transparency of the reproduced sound.

The stylus tip uses special polished Microline stylus having ideal contact surface of 80μm against the record grooves to achieve high reproduction performance.

The magnetic circuit is based on the combination of electromagnetic soft iron and samarium cobalt, proven by many of its achievements, to realize magnetic characteristics consistent with the coil vibration to ensure overall balance and thickness of the sound. 2.5mm pure sapphire base will firmly support each of these highest quality materials to eliminate the loss of signal.

Japanese traditional craft technique, gold leaf, has been applied to the housing made of extra-super duralumin (A7075). The elegant gold leaf finish of the housing was succeeded by the cooperation of Hakuichi, located in Kanazawa prefecture. Etsuro Gold is finished using “Hon Kinpaku” 24K purity gold to surround the super rigid extra-super duralumin body (A7075) to reduce unwanted resonance.

The specially treated pure copper coil is wounded in-house and the components are also precisely hand assembled with consistency by the skilled craftsmen of Excel Sound carrying over many years of accumulated cartridge production experience. The performance together with the elegant and gorgeous finish deserves to be the top model.

Type: Moving coil

Frequency response: 10-50,000Hz

Output voltage: 0.3mV/1kHz

Output balance: ＜0.3dB/1kHz

Channel separation: 33dB/1kHz

Tracking weight: 2gr

Impedance: 4Ω/1kHz

Trackability: ＞70μm/2gr

Stylus shape: Special polished 80μm microline diamond

Cantilever: 0.22mm□Diamond

Cartridge base: 2.5mm pure sapphire plate

Cartridge housing: Extra super duralumin(A7075)

Housing processing: 24K Gold leaf "Kinpaku" finish

Terminal pin: 24K Gold plated

Cartridge weight: 8.7 grams

Inhalt:

Warranty card, Instruction manual (Dimensions, specifications), Stylus brush, 2 mounting screws

Box Material: Walnut

MC-Moving Coil

Frequenzgang: 15-50000 Hz

Ausgangsspannung: 0,25 mV/1KHz

Auflagekraft:  2 Gramm

Impedanz:  3 Ohm

Nadelform:  80mü microline Diamant

Tonabnehmerbasis: 2,5mm Saphirplatte mit Gewindebuchsen

Gehäuse Herstellung: Urushi-Lack mehrschichtig

Oberfläche Silberblatt

Schriftzug:  Goldblatt

Gewicht 9 Gramm

MC-Moving Coil

Frequenzgang: 15-50000Hz

Ausgangsspannung: 0,25 mV

Auflagegewicht: 2 Gramm

Impedanz: 3 Ohm

Nadelform: 80mü microline Diamant

Tonabnehmerbasis: Extra Super Duraluminium A7075 mit Gewindebuchsen

Tonabnehmergehäuse: Extra Super Duraluminium A7075

Gehäuse Herstellung: Urushi-Lack mehrschichtig

Schrift: Silberblatt

Tonabnehmer Gewicht: 8,1 Gramm

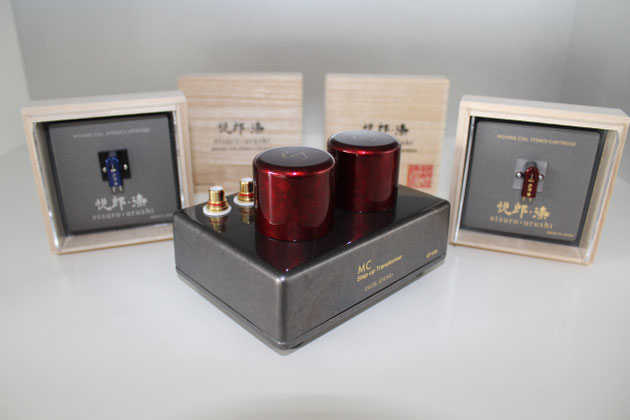

Technische Daten

Frequenzgang 10 Hz - 150 kHz

Step-Up Verhältnis 26 dB

Kompatible Tonabnehmer Impedanz 2 - 10 Ohm

Empfohlene Lastimpedanz 47 Kiloohm

Kanalbalance kleiner als 0,5 dB

Abmessungen/Gewicht L 95 mm, B 135 mm, H 85 mm / 530 g

Gehäuse Herstellung Urushi-Lack mehrschicht, Schrift: Goldblatt
